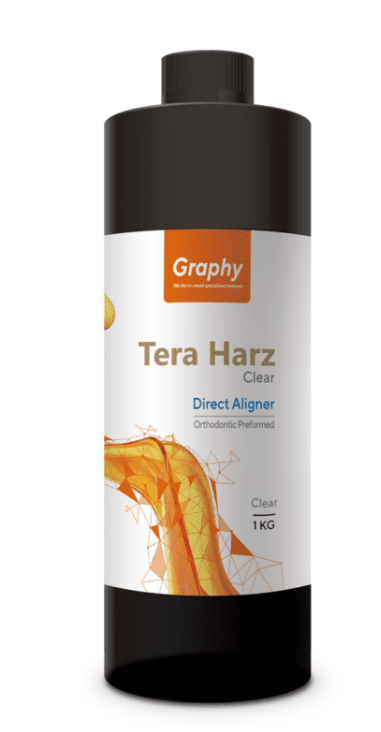

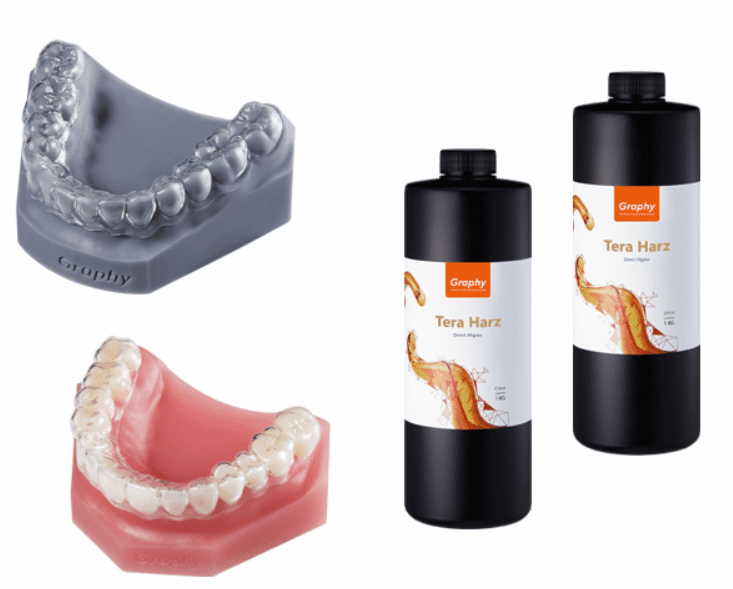

Graphy Resin TC-85DAC – Clear Aligner

Description

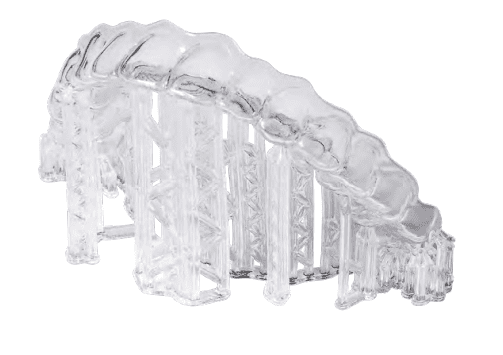

Graphy Resin TC-85DAC is a biocompatible material and is dedicated to the dental industry. With this resin, it is possible to create a direct aligner. The dentist can print clear aligners without any other steps. This is the world’s first direct aligner material with a 3D printer. The prints have high elongation, and, high flexibility and they are very precise.

This is the new material and technology in orthodontic treatment that enable us to overcome the current clinical limitations of the clear aligner.

✅Biocompatible resin
✅Approved by – CE, FDA, and KFDA
✅Nontoxic
✅Hypoallergenic material
✅High elongation
✅High flexibility
✅High precision
✅Dedicated to the dental industry – ideal for direct clear aligners
✅For DLP and LCD-type 3D Printers

Technical Specification:
Volume: 1kg
Color: Clear
Viscosity: 500 ± 100 cps
Surface Hardness: Shore ≥ 85 D
Flexural Strength: ≥ 65 MPa
Flexural Modulus: ≥ 1500 MPa

Compatible with

SprintRay (Pro 95/ Pro 55/ MoonRay)
Carima (IM2/ IMD)
Asiga (Pro 4K, Max UV)
Uniz (Slash2/ NBEE)
Ackuretta (SOL)
Phrozen (Sonic Series)

Note **

A perfect workflow is needed to achieve a good final result (mechanical properties, color). Correct pre- and post-processing with compatible software and hardware is essential. Please check the product that is recommended by Graphy for the correct post-processing process – Graphy Cure M and Graphy Cure THC 2 with Nitrogen.
This material is only sold to trained and certified customers, contact us about the requirements.
